KERBS & BARRIERS

Road-edging kerbs, median dividers and MBPJ-profile interlocking barriers for road median separation and traffic management.

Also on this page: Median Curbs, Interlocking Barriers

Median curb, cross section, 300 x 150 mm Cross section of a precast concrete median curb, 300 mm high by 150 mm wide by 600 mm long, with a 230 mm vertical face and a 70 mm battered upper front. 150 50 300 230 70 SECTION . 300H x 150W x 600L

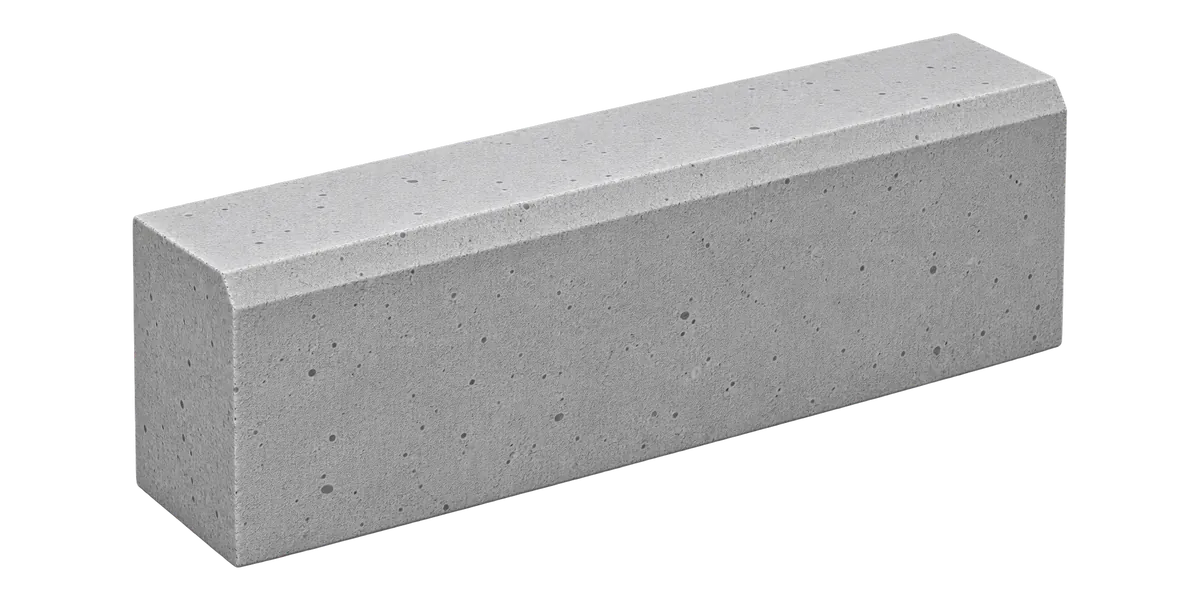

The median curb is cast at 300H x 150W x 600L to Grade 30. A standard kerb and an opening type for drainage inlets are also supplied, along with MBPJ-profile interlocking barriers.

1. PICK THE PROFILE

Concrete grade and load class are specified against your project and confirmed on the quotation, so we do not publish a single figure here.

SIZES & SPECS drawings and tables

Specification

MEDIAN CURB300H x 150W x 600L

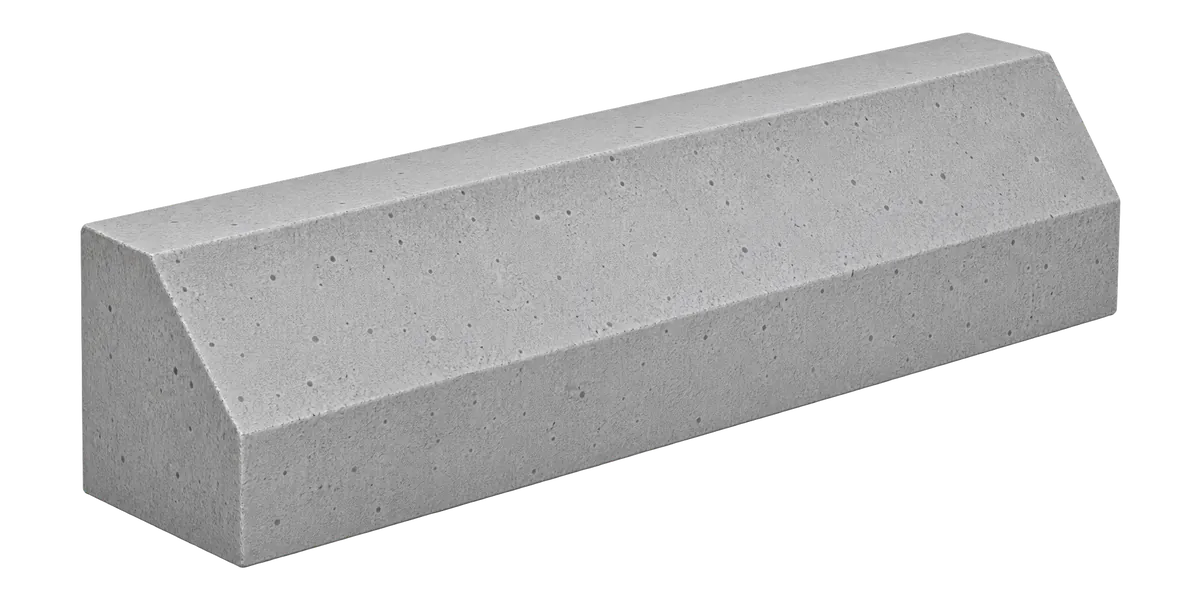

KERB590x140x300, and an opening type

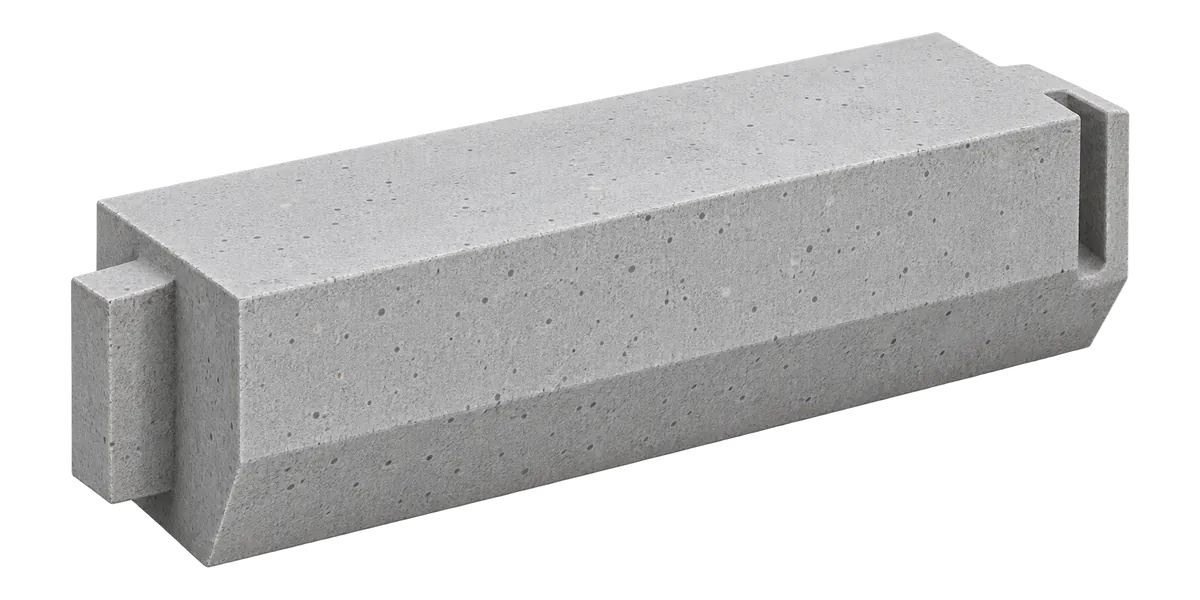

INTERLOCKINGMBPJ profile, road median
CONCRETE GRADEConfirmed on quotation
LOAD CLASSConfirmed on quotation

Standard sizes

Kerbs & Barriers standard sizes - 4 rows
Size (mm)Thickness / gradeDetail
300H x 150W x 600LGrade 30median curb
590x140x300On requestkerb
opening typeOn requestdrainage inlet
MBPJ profileGrade 30interlocking

These are the profiles we cast as standard; MBPJ is a municipal specification. We also cast to your dimensions - send us the profile you need and we will confirm it on the quotation.

SECTION Median Curb . 300H x 150W DRG S-MC-01 . catalogue p18
Median curb, cross section, 300 x 150 mm Cross section of a precast concrete median curb, 300 mm high by 150 mm wide by 600 mm long, with a 230 mm vertical face and a 70 mm battered upper front. 150 50 300 230 70 SECTION . 300H x 150W x 600L
