CATCH PITS

Stormwater collection boxes for roadside drainage inlets, BRC A10 reinforced and supplied with a matching grating.

Also on this page: Catch Pit Gratings

Catch pit, plan view, 700 x 500 x 400 mm Plan view of a precast concrete catch pit, 700 mm long by 500 mm wide by 400 mm high, with a 490 by 290 mm grating opening and a 230 mm outlet. BRC A10 reinforcement, approximately 244 kg. 700 490 500 290 230 outlet PLAN . 700x500x400H . BRC A10

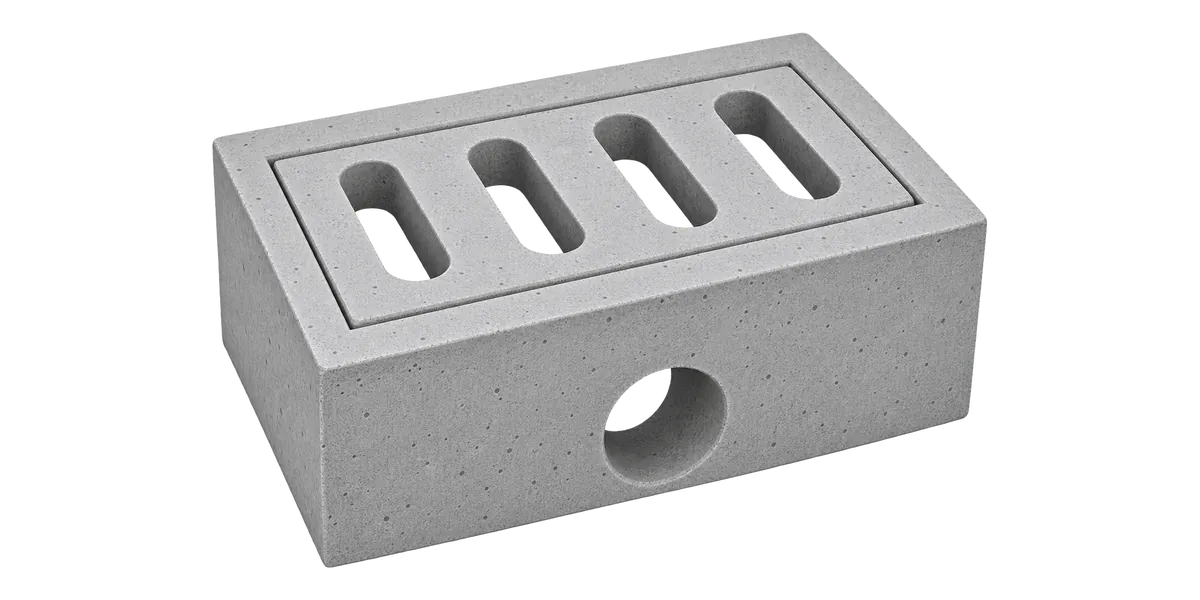

The standard pit is 700 x 500 x 400H at approximately 244 kg, supplied with a 290x490x50 grating reinforced with Y16 bar. Two smaller boxes are available with MS grating.

1. PICK THE BOX

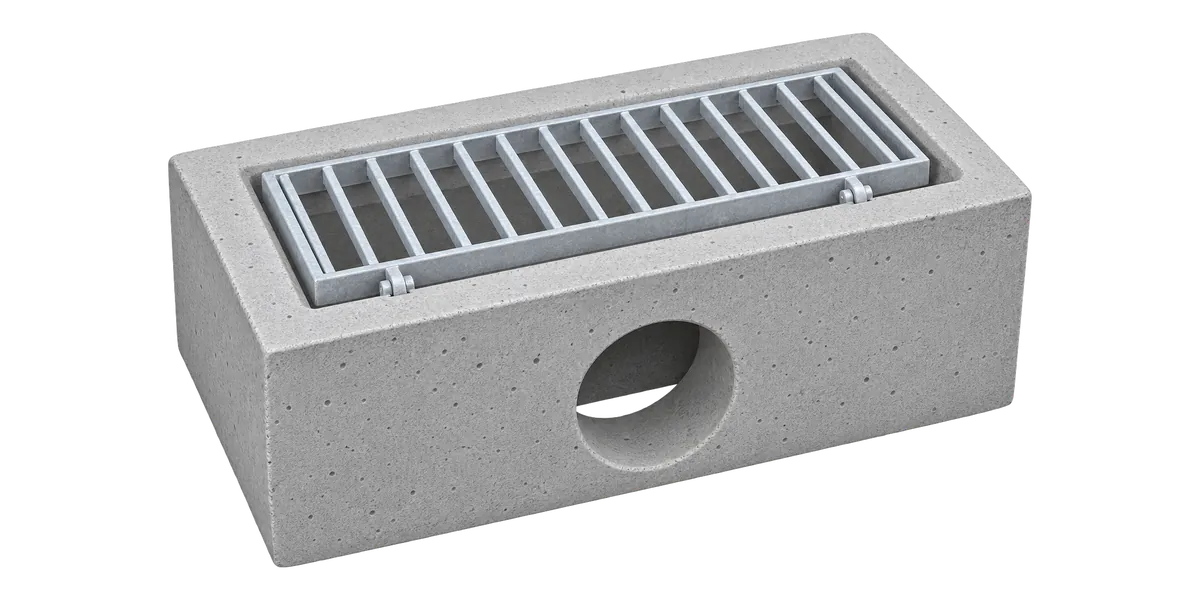

The two smaller boxes are supplied with MS grating rather than a reinforced concrete grating.

2. GRATING

Concrete grade and load class are specified against your project and confirmed on the quotation, so we do not publish a single figure here.

SIZES & SPECS drawings and tables

Specification

PLAN700 x 500mm
DEPTH400mm H
MESHBRC A10 . approx 244 kg
GRATING290x490x50 . Y16 bar
ALT BOXES495x275x120 and 700x350x120, MS grating
CONCRETE GRADEConfirmed on quotation
LOAD CLASSConfirmed on quotation

Standard sizes

Catch Pits standard sizes - 4 rows
Size (mm)Thickness / gradeDetail
700x500x400HBRC A10approx 244 kg
290x490x50Y16 bargrating
495x275x120MS gratingbox
700x350x120MS gratingbox

These are the sizes we cast as standard. We also cast to your dimensions - send us the pit and grating you need and we will confirm it on the quotation.

PLAN + OPENING Catch Pit . 700x500x400H DRG S-CP-01 . catalogue p16-p17
Catch pit, plan view, 700 x 500 x 400 mm Plan view of a precast concrete catch pit, 700 mm long by 500 mm wide by 400 mm high, with a 490 by 290 mm grating opening and a 230 mm outlet. BRC A10 reinforcement, approximately 244 kg. 700 490 500 290 230 outlet PLAN . 700x500x400H . BRC A10

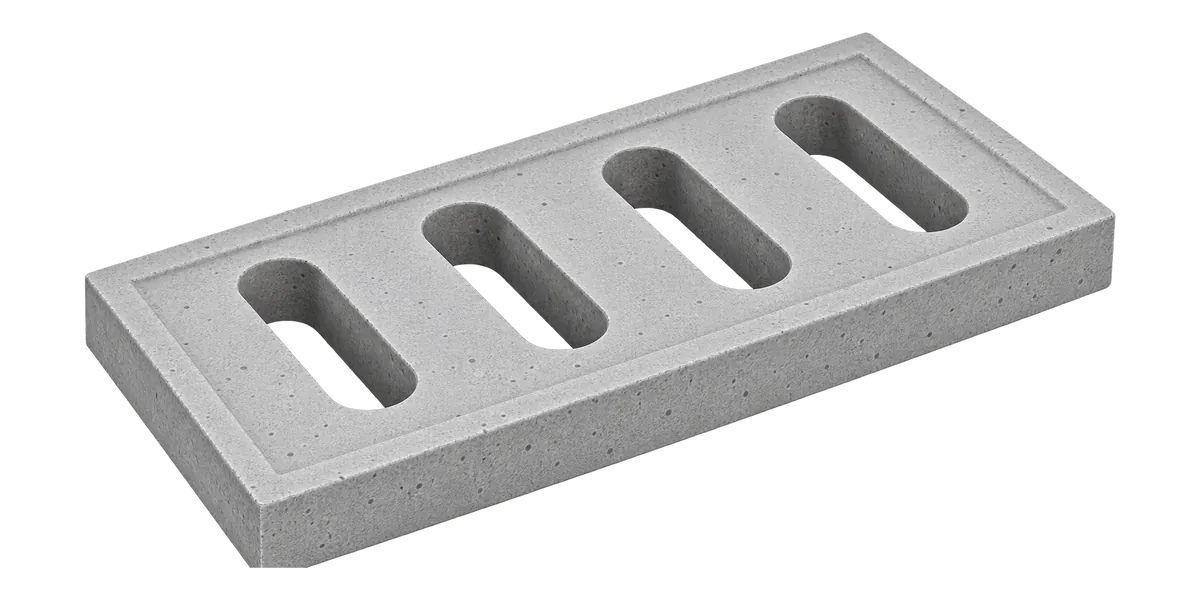

PLAN Catch Pit Grating . 290x490x50 DRG S-CP-02 . catalogue p17
Catch pit concrete grating, 290 x 490 x 50 mm Plan view of the concrete grating that closes a Zentra catch pit: 290 mm by 490 mm by 50 mm thick, reinforced with Y16 bar. 290 490 300 290 x 490 x 50 . Y16 . cat p17 slot layout indicative
